12-14-21 | Refurbish Driveshaft and new Universal Joints
|
|

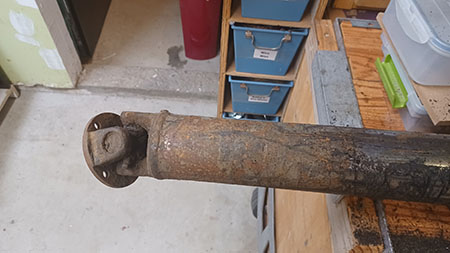

It would seem whenever I think I am ready to install the engine I come across something else that needs refurbishing. In this case I looked at the drive shaft and realised that it has been sitting for over 35 years So I decided to replace the Universal Joints and de-rust the driveshaft. |
||

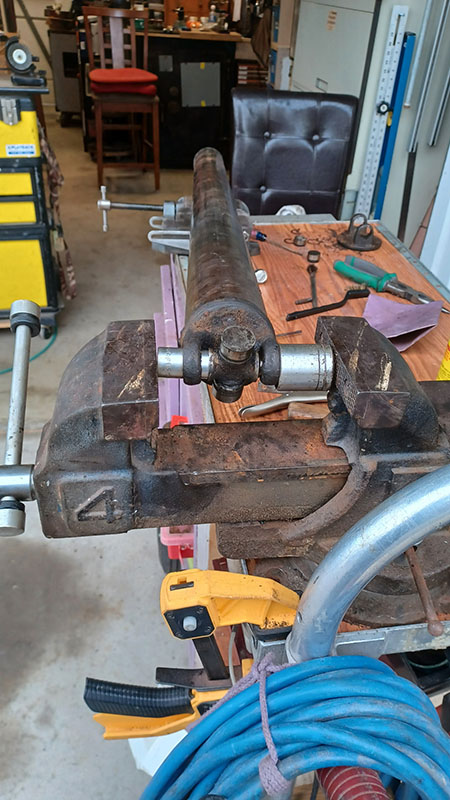

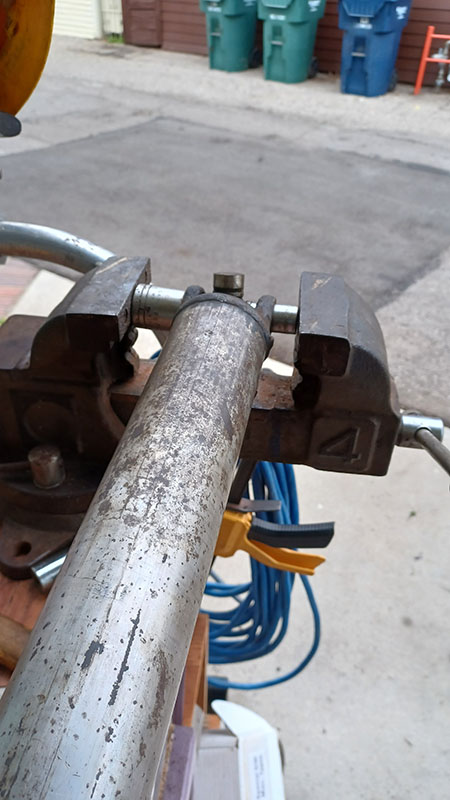

I decided to use the small scocket pressed into a large scocet method. |

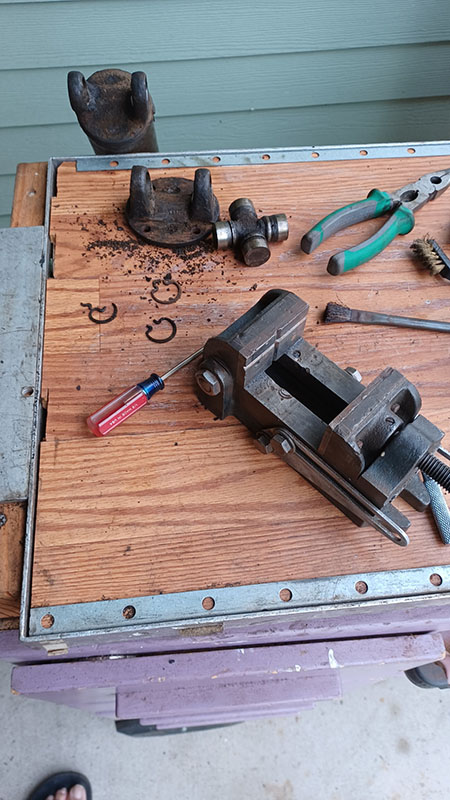

When the bearing cap was out far enough I could twist and turn it out with a pair of vise grips. |
|
It just made sense to order new u-joints. |

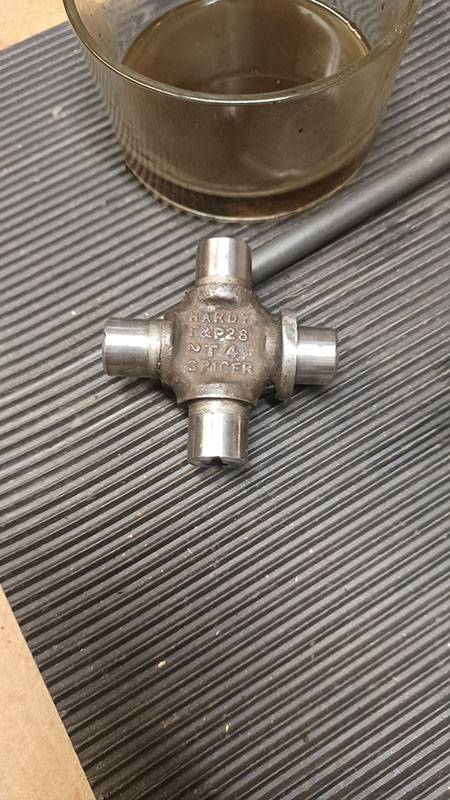

This is the old one. |
|

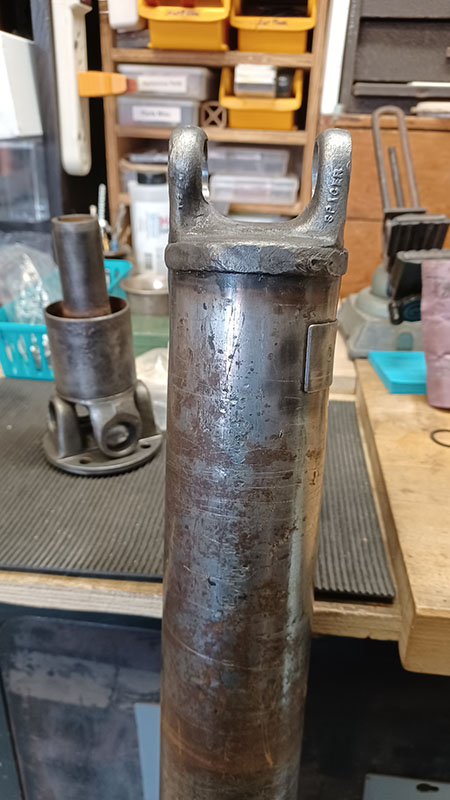

Wire wheel |
Some sanding. |
|

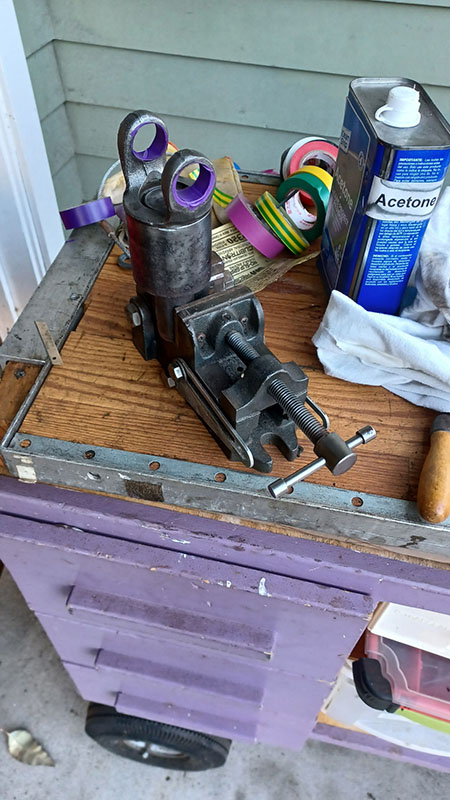

Mask off the bearing area. |

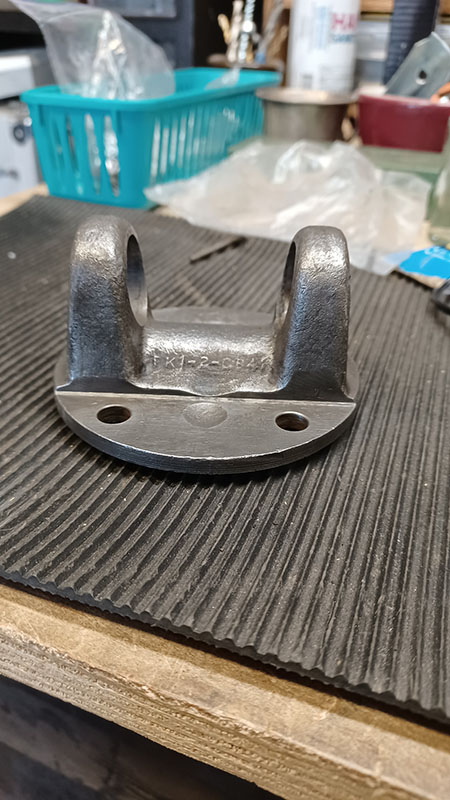

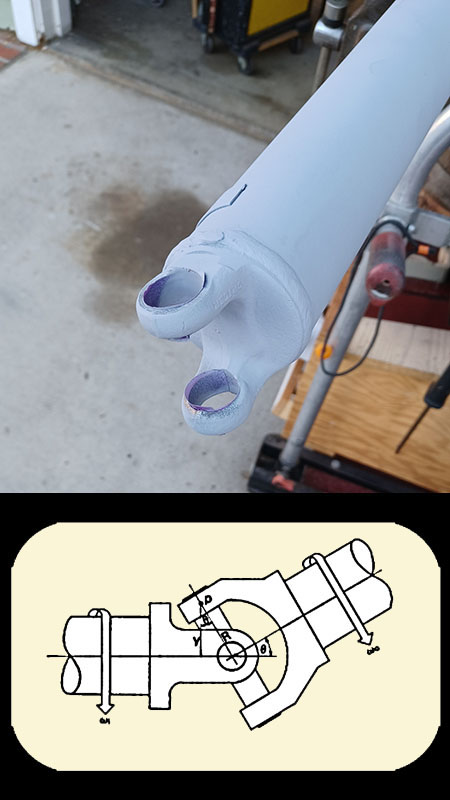

Start with some gray primer. |
|

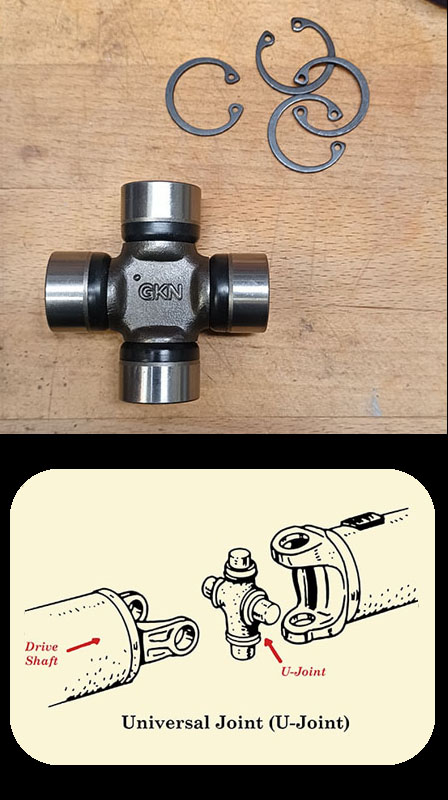

The new bearings |
Press the bearings in using the same method I used to press them out. |
|

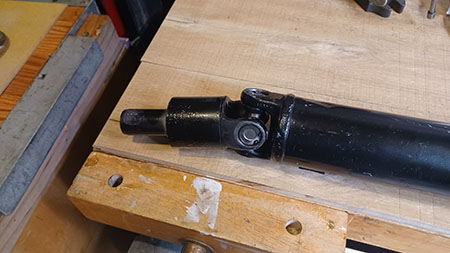

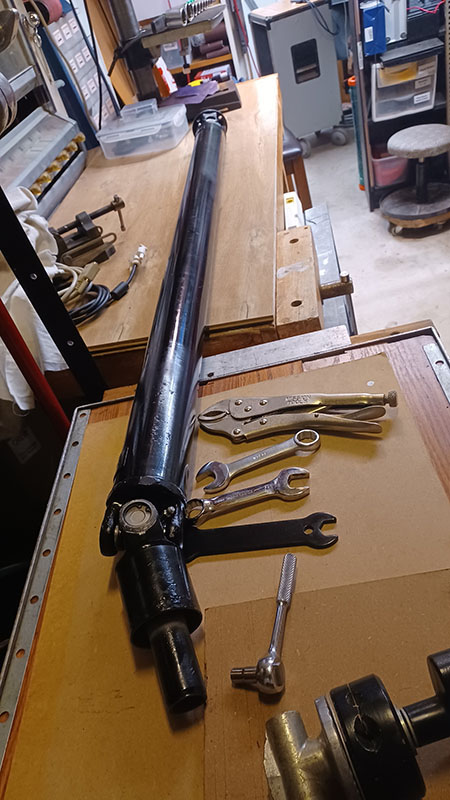

Looks cool. |

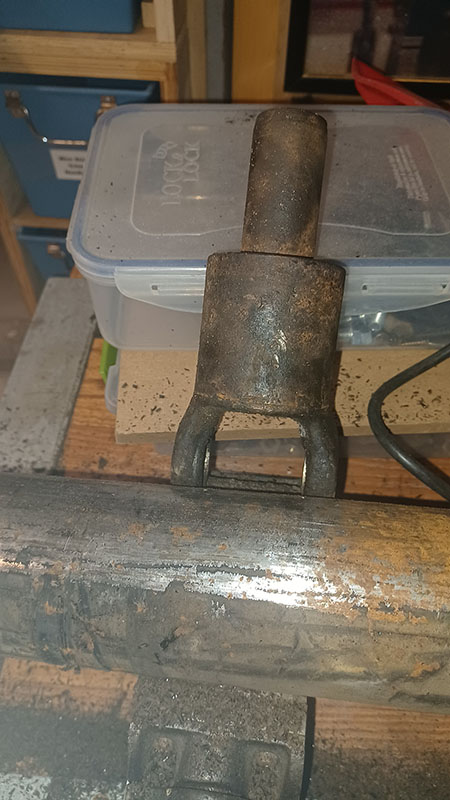

Spent time cleaning out and de-rusting where the transmission spline fits into the driveshaft . |
|
|
||
